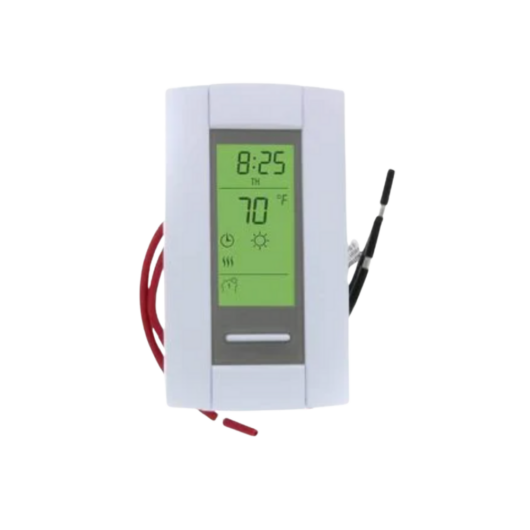

Honeywell/Aube – line voltage programmable thermostat

$99.00

We offer a range of thermostats and timers that meet the demands of home, commercial, and industrial operation.

Product Highlights at 240/208v

Programmability icon

Programmable, 7 Day

Voltage icon

240v, 208v

Stages icon

1 Heat

Mount icon

Vertical

Power Method icon

Hardwired

Temperature Range (F) icon

40°F – 86°F

Great for predictable occupancy.

  • Double Pole Line Voltage – four wire thermostat (two line and two load wires)
  • 40-86 Degrees Fahrenheit temperature range (4.4-30 Degrees Celsius)
  • Back-lit digital display
  • Up to 4 programs/day
  • 5 day + 2 weekend
  • Proven to save energy
  • NOTE: Double pole thermostats have a maximum capacity of 3600 watts at 240-volt and 3120 watts at 208-volt.
  • NOTE: 120v single pole thermostats have a maximum capacity of 2000 watts; and single pole 240-volt at 4000 watts
  • 3-year warranty

Specs

Specifications

  • Watts (208V): 3120W
  • Amps (208V): 15
  • Watts (240V): 3600W
  • Amps (240V): 15

Features

  • Advanced temperature control ensures total comfort by minimizing temperature swings
  • ON/STANDBY switch enables thermostat shutdown at the end of heating season for added security
  • On-screen heating power indicator gives at-a-glance verification of power being used
  • Early Start function ensures programmed temperature is reached by programmed time
  • Temporary bypass enables temperature override without changing programming
  • Attractive design includes hidden programming buttons
  • Battery-free backup means no re-programming your schedule after a power outage

Specs

Application:

Electric Heat (Line Voltage)

Stages:

1 Heat

Programmability:

Programmable

7 Day

User Interface:

Push Button

Mount:

Vertical

Power Method:

Hardwired

Operating Temp Range:

32°-120°F

Temperature Range (F):

40°F – 80°F

Voltage:

240v

208v

Amperage:

15

Switch Action:

DPST

Electric Connection:

6″ Tinned Copper Lead Wires

Hertz:

60

Color:

White

Height:

4.9″

Width:

2.8″

Depth (Inches):

9/10″

Humidity Control:

No

Wireless:

No

Docs

Thermostat Installation PDF
